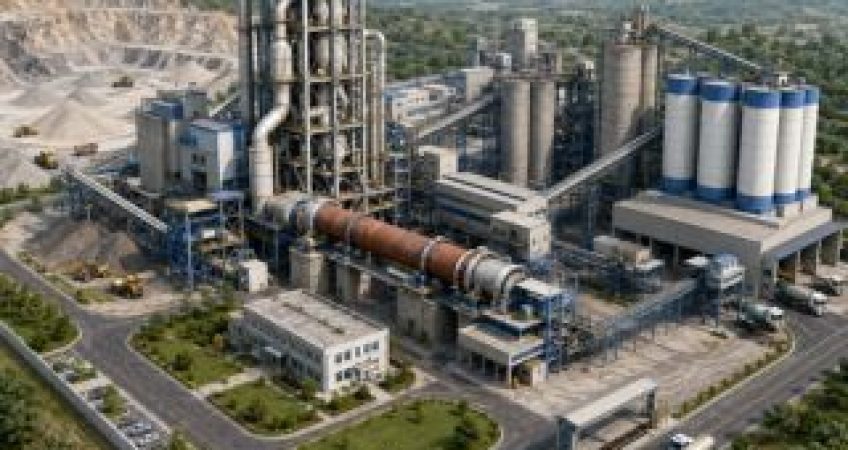

Designing a cement plant is far more than arranging buildings on a plot of land. It is a deeply strategic exercise that directly determines how efficiently the plant operates, how safely workers function within it, and how cost-effective production remains over decades. A well-planned layout reduces material handling distances, prevents operational bottlenecks, ensures regulatory compliance, and creates room for future expansion. Whether you are planning a greenfield facility or upgrading an existing one, understanding the core considerations in cement plant layout design is essential from day one.
01. Site Selection & Topography
Proximity to Raw Materials
The most fundamental factor in site selection is access to raw materials. Limestone, clay, shale, and silica are the backbone of cement production, and sourcing these from nearby quarries drastically reduces transportation costs and operational dependencies. A site located adjacent to quality limestone deposits with long-term mining potential provides a stable, cost-efficient supply chain from the outset.
Terrain & Ground Conditions
Flat, stable terrain significantly reduces the complexity and cost of civil foundation work. Uneven or sloped land may require grading, retaining structures, or tiered platform designs — all of which add cost and construction time. Soil bearing capacity must be thoroughly assessed before placing heavy structures like kilns, preheater towers, and silos. Seismic zone classification also plays a critical role in determining structural engineering standards.
Infrastructure & Accessibility
Reliable access to road, rail, or port infrastructure is non-negotiable for a cement plant. Raw material delivery and finished product dispatch both depend on efficient logistics networks. Power availability, grid connection capacity, and proximity to water sources for cooling and dust suppression further determine the viability of a site. A plant lacking any of these creates permanent operational constraints that no amount of good layout design can overcome.
02. Optimizing Material Flow & Process Sequence
The internal layout of a cement plant must follow the natural sequence of the production process — from raw material crushing and blending, through pre-heating and kiln firing, to clinker cooling, grinding, and final packing. Any deviation from this linear flow introduces unnecessary cross-traffic, longer conveyors, and energy waste.
A properly designed plant layout is the basis for effective management of personnel, equipment, maintenance, and materials — and a well laid-out plant will always be a safer, more productive, and more efficient plant.
Avoiding Counterflow Operations
Material should move in one dominant direction throughout the plant. Counterflow layouts — where materials or vehicles must cross or reverse direction — lead to congestion, contamination risks, and higher conveying costs. Designing the primary process axis in alignment with the site’s natural gradient also allows gravity-assisted material transfer where possible, reducing power consumption.
Equipment Positioning & Spacing
Critical equipment such as rotary kilns, vertical roller mills, and preheater towers must be positioned with adequate clearance for maintenance access, spare part handling, and heat dissipation. Building spacing should comply with fire safety standards, environmental guidelines, and operational hygiene requirements. Structures like crusher halls and clinker silos are high-dust zones — their placement relative to wind direction and adjacent areas must be carefully evaluated.
Equipment Zone & Layout Positions
- ⚙️ Crusher & Raw Mill — Positioned closest to the raw material intake point to minimize initial haulage distance and reduce conveyor load from day one.
- 🔥 Kiln & Preheater — Centrally located along the primary process axis; the preheater tower is the tallest structure on site and anchors the entire layout flow.
- 🏗️ Cement Silos & Packing — Positioned at the dispatch end, adjacent to weigh bridges and loading bays for maximum outbound logistics efficiency.
03. Safety, Environment & Regulatory Compliance
Worker Safety in the Layout
Cement plants are high-risk environments involving extreme heat, heavy rotating machinery, dust, and elevated structures. The layout must incorporate clear emergency evacuation routes, safe pedestrian walkways physically separated from vehicular paths, and safe access platforms around all major equipment. Administrative blocks, canteens, and rest areas should be placed on the windward side of the plant to keep workers upwind and away from dust and pollutant exposure. Rotary kilns and preheater towers require generous clearances in the layout for safe operation and maintenance access.
Environmental Footprint Planning
Dust, noise, and wastewater generated by cement operations must be planned for at the layout stage — not retrofitted later. Dust-generating zones like crushers, raw mills, and clinker storage should be positioned downwind of habitation, offices, and sensitive areas. Adequate buffer distances from residential zones, schools, and hospitals are mandated by environmental regulations in most jurisdictions. Provision for dust collection systems, bag filters, electrostatic precipitators, and noise barriers must be built into the spatial planning from the beginning.
Regulatory & Zoning Compliance
Any plant design must meet applicable environmental clearances, industrial zoning regulations, and local building codes before a single foundation is poured. Site layouts that ignore these requirements risk costly legal challenges, forced modifications, or outright project delays. Engaging regulatory consultants early in the layout design phase is a prudent investment that prevents far more expensive corrections later.
04. Scalability, Energy & Future-Proofing
Designing for Expansion
Cement demand fluctuates with construction cycles, and a plant that cannot expand when demand grows represents a missed commercial opportunity. Layouts should reserve defined expansion zones adjacent to the kiln line, raw mill section, and packing plant. Utility infrastructure — power substations, water lines, compressed air mains — should be sized to support a Phase 2 capacity expansion without requiring a full system redesign.
Energy Efficiency Integration
With energy constituting a major portion of cement production costs, layout choices that reduce conveyor lengths, minimize elevation changes, and integrate waste heat recovery systems (WHRS) translate directly to lower operating costs. The WHRS must be incorporated into the initial layout adjacent to the preheater and cooler — retrofitting it later in a constrained plant is both expensive and operationally disruptive. Vertical roller mills, where site conditions permit, offer significant power savings over ball mill systems and should be factored into early-stage space planning.
The Layout is the Foundation of Performance
Every operational, financial, and environmental outcome in a cement plant can be traced back to decisions made in the layout design phase. Getting the site selection right, aligning the process flow intelligently, building in safety and compliance, and preserving room for future growth are not optional extras — they are the structural DNA of a plant that will perform for 30 to 50 years. Investing in rigorous layout planning from the very beginning is the single highest-return decision any cement plant project can make.
